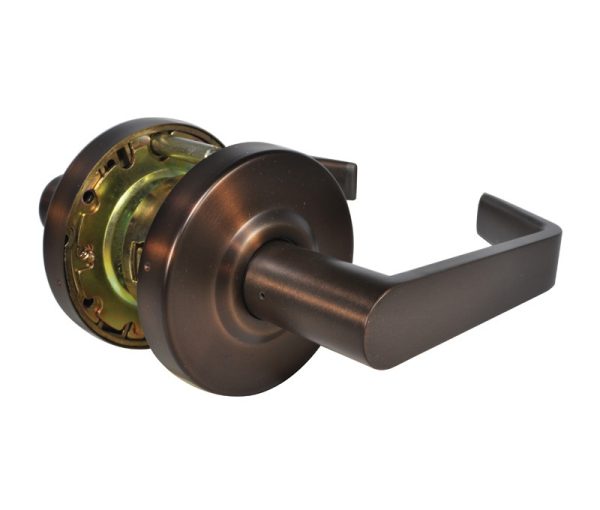

LSDA GRADE 2 PASSAGE LEVER 2-3/4″ DARK BRONZE 087281 – 310LE10BE2-3/4UL

SKU: 310LE10BE2-3/4UL Category: Tag: Brand:

The 300-Series levers feature cylindrical construction and a strong return spring for non-sagging use on a variety of commercial doors. The lever design is compliant with ADA and other accessibility codes.
Specifications:
Design Style Lexington (LE)
Door Prep 2-1/8″ diameter cross bore; 1″ edge bore
Door Thickness 1-3/8″ – 1-3/4″
Function Passage
Grade Grade 2 – Medium Duty Commercial / Heavy Duty Residential
Handing Field Reversible
Included in package Installation Instructions
Industry Finish US10BE/613 Dark Bronze
Knob/Lever Lever
Latch/Bolt/Backset 2-3/4″
Manufacturer LSDA
Series 300
Standards / Ratings ANSI/BHMA 156.2 Series 4000 Grade 2; UL Listed Latches (USA and Canada) for 3-hour fire doors
Strike ASA 4-7/8″
Thru Bolting Yes
Type – Additional Info Cylindrical
For more information, Connect With Us and let IDN help find what you need.
Applications:
These locks are recommended for use on exterior and interior doors.Typical applications include Offices, Commercial Properties, Retail Spaces, Multi-Family Buildings, Industrial Sites, and Public Building.
