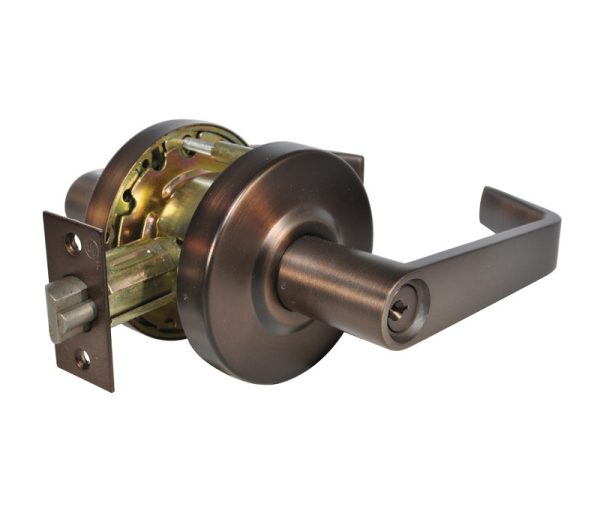

LSDA GRADE 2 STOREROOM LEVER 2-3/4″ SCHLAGE C DARK BRONZE 087293 – 340LE10BE SC2-3/4UL

SKU: 340LE10BE SC2-3/4UL Category: Tag: Brand:

The 300-Series levers feature cylindrical construction and a strong return spring for non-sagging use on a variety of commercial doors. The lever design is compliant with ADA and other accessibility codes. Compatible with many retrofit cylinders such as LSDA C500, Ilco, GMS and most High-Security brands including Medeco, Assa, Schlage Primus, Kaba Peaks, etc.
Specifications:
Combinating Keyed Different
Cylinder SC4 6-Pin KD (For replacement options see Benefits & Applications)
Design Style Lexington (LE)
Door Prep 2-1/8″ diameter cross bore; 1″ edge bore
Door Thickness 1-3/8″ – 1-3/4″
Function Storeroom
Grade Grade 2 – Medium Duty Commercial / Heavy Duty Residential
Handing Field Reversible
Included in package Installation Instructions 2 Keys
Industry Finish US10BE/613 Dark Bronze
Keyway Schlage C
Knob/Lever Lever
Latch/Bolt/Backset 2-3/4″
Manufacturer LSDA
Pinning 6-Pin, Keyed 5-Pin
Series 300
Standards / Ratings ANSI/BHMA 156.2 Series 4000 Grade 2; UL Listed Latches (USA and Canada) for 3-hour fire doors
Strike ASA 4-7/8″
Thru Bolting Yes
Type – Additional Info Cylindrical
For more information, Connect With Us and let IDN help find what you need.
Applications:
These locks are recommended for use on exterior and interior doors.Typical applications include Offices, Commercial Properties, Retail Spaces, Multi-Family Buildings, Industrial Sites, and Public Building.
