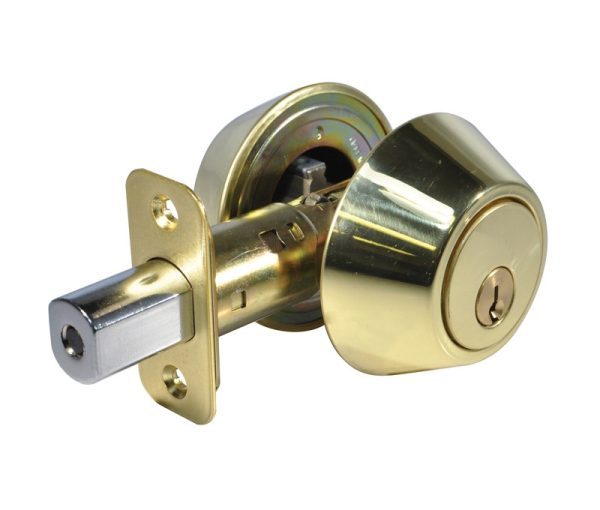

75-Series deadbolt locks come with the popular KW1 keyway and are available in three finishes. These locks are recommended for use on exterior and interior doors.
Specifications:
Combinating Keyed Alike
Cylinder 5-Pin KW1 KA4
Deadbolt 1″ x 2-1/4″ Faceplate Radius Corners
Door Prep 1-1/2” – 2-1/8” diameter bore; 1” crossbore
Door Thickness 1-3/8″ – 1-3/4″
Function Double Cylinder Deadbolt
Grade Grade 3 – Residential
Handing Field Reversible
Included in package Instructions Template Mounting Hardware
Industry Finish US3/605 Bright Brass
Keyway Kwikset KW1
Latch/Bolt/Backset Adjustable
Manufacturer LSDA
Material Brass Zinc Steel
Pinning 5-Pin
Reinforcement No
Series 70
Standards / Ratings ANSI/BHMA 156.2 Series 4000 Grade 3
Strike 1″ x 2-1/4″ Radius Corners
Trim Ring No
Type – Additional Info Tubular
For more information, Connect With Us and let IDN help find what you need.
Applications:
These locks are recommended for use on exterior and interior doors. Typical applications include Houses and Apartments.
