LSDA HANDLESET JUMBO GRIP PLANTATION STYLE SCHLAGE C 105093 – 46PL11P S

The 46-Series is a selection of attractive and secure handlesets for residential entrances. Available in two contemporary styles and three popular finishes, they enhance any doorway. Each model includes a single-cylinder deadbolt and a separate extra large grip handle with a passage latch.
Specifications:
Accessories See Parts & Accessories Section
Combinating Keyed Different
Design Style Plantation (PL)
Door Prep 2-1/8” diameter bore 1” crossbore; center-to-center dimensions: 9-11/16”
Door Thickness 1-3/8″ – 1-3/4″
Function Entry with Deadbolt
Grade Grade 3 – Residential
Handing Non-Handed
Industry Finish US11P/643E Aged Bronze (same as 716)
Keyway Schlage C
Knob/Lever Knob
Latch/Bolt/Backset Adjustable
Manufacturer LSDA
Material Zinc Die Cast Brass Steel
Pinning 5-Pin
Series 46
Strike 2-1/4” full lip

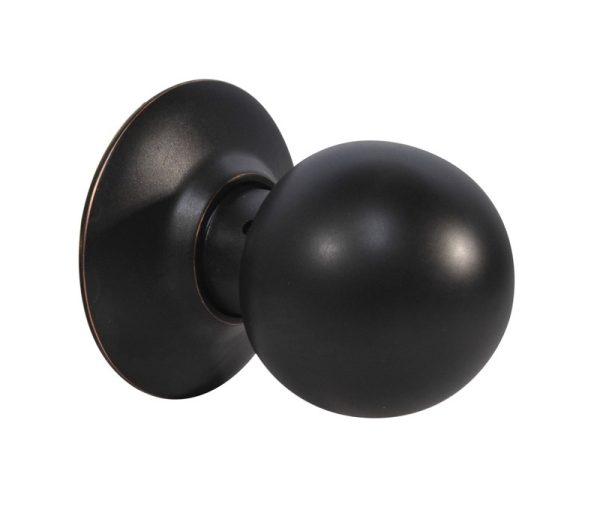

Trim Inside Trim is a Ball Design Knob. Knob can be replaced with an optional wave shaped design (Lyon LY) lever; Decorative cap for covering the screws during installation provided.
Type – Additional Info Tubular
For more information, Connect With Us and let IDN help find what you need.
Applications:
These locks are recommended for use on exterior and interior doors. Typical applications include Houses, Apartments, Condominiums, Townhomes, and Office Buildings.
