Specifications:
Combinating Combinated, 0-Bitted
Deadbolt 1-1/8″ x 2-1/4″ Faceplate
Design Style Thumbturn
Door Prep 1″ x 2-1/8″
Door Thickness 1-3/4″ x 2″

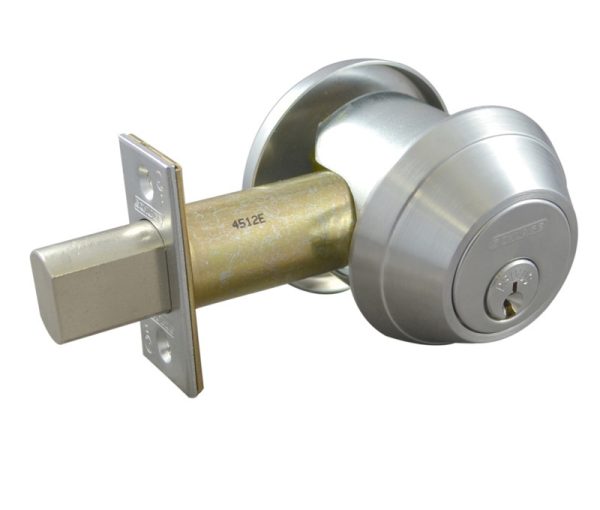

Function Single Cylinder Deadbolt
Grade Grade 1 – Heavy Duty Commercial
Handing Field Reversible
Included in package Instructions Template Mounting Hardware
Industry Finish US26D/626 Satin Chrome
Keyway Primus
Latch/Bolt/Backset 2-3/4″
Manufacturer Schlage
Pinning 6-Pin
Reinforcement Anti-Pry Shield
Series B760
Standards / Ratings UL ANSI A156.5
Strike 1-1/8″ x 2-3/4″
Trim Ring No
Type – Additional Info Cylindrical
For more information, Connect With Us and let IDN help find what you need.
Applications:
Deadbolts provide additional security for many applications. Deadbolts offer a longer locking bolt which extends farther than most latches. The bolt can only be retracted with the proper key or combination or by means of a Thumbturn.
