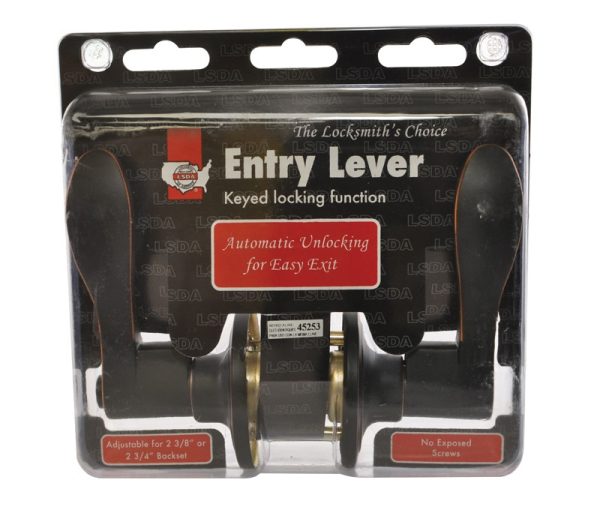

LSDA GRADE 3 ENTRY LEVER LYON KWIKSET ANTIQUE BRONZE 101297 – 50LY11P K KA4

The 50-Series levers are residential grade tubular locks in a variety of attractive styles. Available in several finishes, they can be used in various residential and light commercial applications.
Specifications:
Combinating Keyed Alike
Cylinder KW1 5-Pin KA4
Design Style Lyon (LY)
Door Prep 2-1/8″ diameter cross bore; 1″ edge bore
Door Thickness 1-3/8″ – 1-3/4″
Function Thumbturn Deadbolt
Grade Grade 3 – Residential
Handing Field Reversible
Included in package Installation Instructions 2 Keys
Industry Finish US11P/643E Aged Bronze (same as 716)
Keyway Kwikset KW1
Knob/Lever Lever
Latch/Bolt/Backset Adjustable
Manufacturer LSDA
Pinning 5-Pin
Series 50
Standards / Ratings ANSI/BHMA 156.2 Series 4000 Grade 3
Strike Full Lip
Type – Additional Info Tubular
For more information, Connect With Us and let IDN help find what you need.
Applications:
These locks are recommended for use on exterior and interior doors. Typical applications include Houses, Apartments, Offices, and Condominiums.
