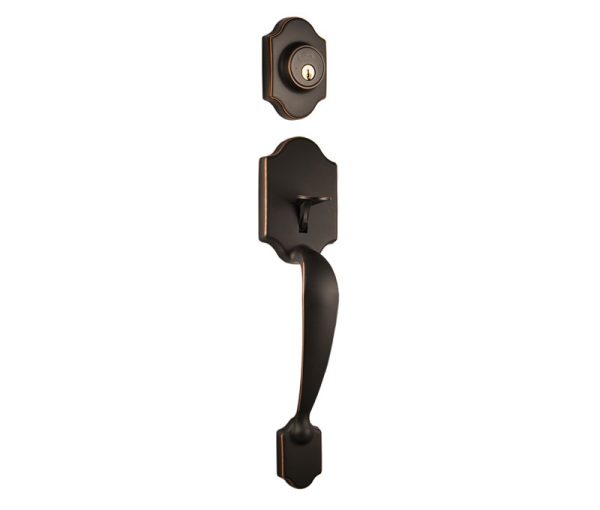

LSDA ENTRY HANDLESET KWIKSET SAINT CROIX AGED BRONZE 091354 – 40SC11P K

The 40-Series is a selection of attractive and secure handlesets for residential entrances. Available in several styles and finishes, they enhance any doorway. Each model includes a single-cylinder deadbolt and a separate grip handle with a passage latch. These locks are recommended for use on exterior and interior doors.
Specifications:
Accessories See Parts & Accessories Section
Combinating Keyed Alike
Design Style Saint Croix (SC)
Door Prep 2-1/8” diameter bore 1” crossbore; center-to-center dimensions: 8-5/8”
Door Thickness 1-3/8″ – 1-3/4″
Function Entry with Deadbolt
Grade Grade 3 – Residential
Handing Non-Handed
Industry Finish US11P/643E Aged Bronze (same as 716)
Keyway Kwikset KW1
Knob/Lever Knob
Latch/Bolt/Backset Adjustable
Manufacturer LSDA
Material Zinc Die Cast Steel
Pinning 5-Pin
Series 40
Strike 2-1/4” full lip
Trim Inside Trim is a Ball Design Knob. Knob can be replaced with an optional wave shaped design (Lyon LY) lever. Decorative cap provided for covering the screws on installations of PA & SC models.
Type – Additional Info Tubular
For more information, Connect With Us and let IDN help find what you need.
Applications:
These locks are recommended for use on exterior and interior doors. Typical applications include Houses, Apartments, Condominiums, Townhomes and Office Buildings.
