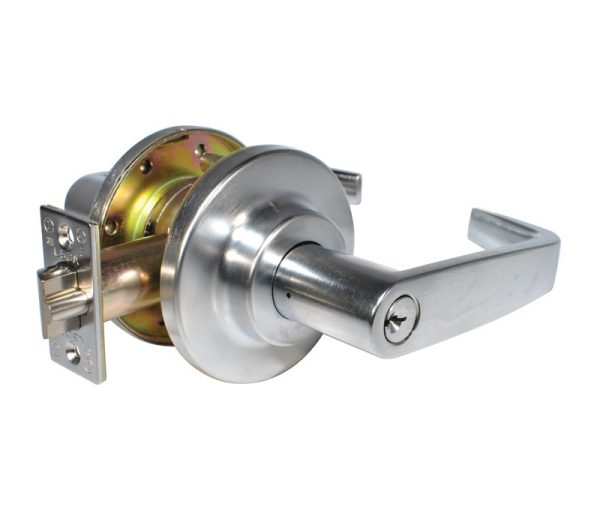

LSDA GRADE 1 CLASSROOM INTRUDER LEVER CLUTCH SATIN CHROME SCHLAGE C 087927 – LFC2800 26D

SKU: LFC2800 26D Category: Tag: Brand:

LF-Series cylindrical lever locks are designed for high traffic applications. Unique cold-rolled steel spindles with tand up to 1000 inch-pounds of torque and the lever is compliant with ADA and other accessibility codes. Compatible with many retrofit cylinders such as LSDA C500, Ilco, GMS and most High-Security brands including Medeco, Assa, Schlage Primus, Kaba Peaks, etc.
Specifications:
Combinating Keyed Different
Design Style Evanston
Door Prep 2-1/8″ diameter cross bore; 1″ edge bore; ANSI 115.2 for thru-bolted installation
Door Thickness 1-3/8″ – 2″
Function Classroom Intruder Clutch
Grade Grade 1 – Heavy Duty Commercial
Handing Field Reversible
Included in package Installation Instructions 2 Keys
Industry Finish US26D/626 Satin Chrome
Keyway Schlage C
Knob/Lever Lever
Latch/Bolt/Backset 2-3/4″
Manufacturer LSDA
Pinning 6-Pin
Series LF
Standards / Ratings ANSI/BHMA 156.2 Series 4000 Grade 1; Latch is UL Listed (USA and Canada) for 3-hour fire doors
Strike ASA 4-7/8″
Thru Bolting Yes
Type – Additional Info Cylindrical
For more information, Connect With Us and let IDN help find what you need.
Applications:
These locks are recommended for use on exterior and interior doors. Typical applications include Offices, Hospitals, Schools, Multi-Family Buildings, Industrial Sites, and Public Buildings
