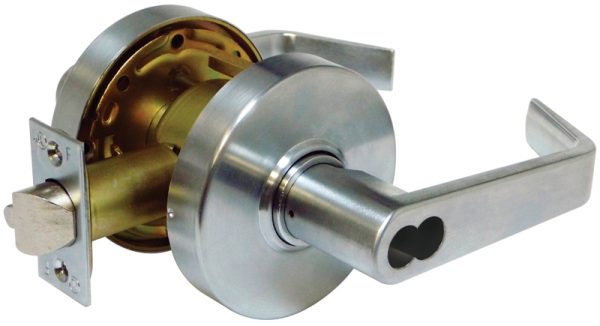

LSDA GRADE 1 STOREROOM LEVER CLUTCH LEXINGTON SFIC 103356 – C5400LE IC26D

The 5000-Series cylindrical lever locks are designed for high traffic applications. They are tested to last more than 4 million cycles. These heavy duty locks come with a popular flat rose design and a lever that is compliant with ADA and other accessibility codes. Some models prepped for Small Format Interchangeable Core (SFIC), such as 6- or 7-Pin Best® style cores.
Specifications:
Combinating SFIC – Small Format Interchangeable Core
Design Style Lexington (LE)
Door Prep 2-1/8″ diameter cross bore; 1″ edge bore
Door Thickness 1-9/16″ – 2-1/8″
Function Storeroom Clutch
Grade Grade 1 – Heavy Duty Commercial
Handing Field Reversible
Included in package Installation Instructions 6 & 7 Pin Tailpieces
Industry Finish US26D/626 Satin Chrome
Keyway Less Core
Knob/Lever Lever
Latch/Bolt/Backset 2-3/4″
Manufacturer LSDA
Pinning 6-Pin or 7-Pin – Less Core
Series 5000
Standards / Ratings ANSI/BHMA 156.2 Series 4000 Grade 1; Latch is UL Listed (USA and Canada) for 3-hour fire doors
Strike ASA 4-7/8″
Thru Bolting Yes
Type – Additional Info Cylindrical
For more information, Connect With Us and let IDN help find what you need.
Applications:
These locks are recommended for use on exterior and interior doors. Typical applications include Offices, Hospitals, Schools, Multi-Family Buildings, and Public Buildings.
