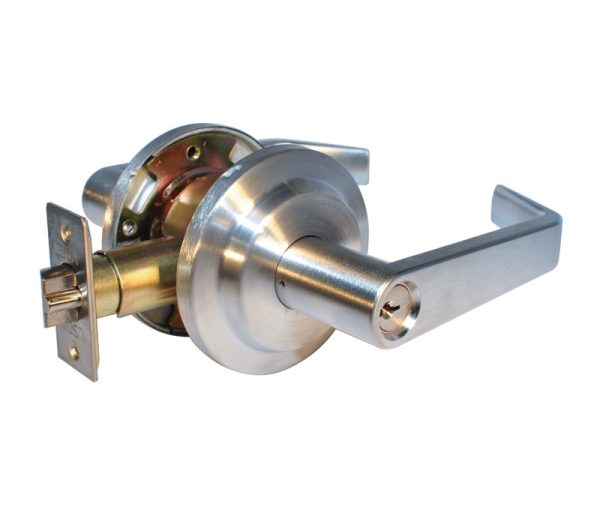

LSDA GRADE 2 CLASSROOM LEVER LEXINGTON CLUTCH UL 2-3/4″ 6-PIN SCHLAGE C SATIN CHROME 109935 – LC150LE26D SC2-3/4UL

The L100-Series is a complete line of Grade 2 commercial leversets. Built with independent return springs in each lever and with an optional clutch feature to protect against excessive torque, these levers resist sagging. The L-shaped lever design with less than 1/2 ” gap between the handle and the door meets most accessibility codes. Compatible with many retrofit cylinders such as LSDA C500, Ilco, GMS and most High-Security brands including Medeco, Assa, Schlage Primus, Kaba Peaks, etc.
Specifications:
Combinating Keyed Different
Cylinder SC4 6-Pin KD (For replacement options see Benefits & Applications)
Design Style Lexington (LE)
Door Prep 2-1/8″ diameter cross bore; 1″ edge bore
Door Thickness 1-3/8″ – 1-3/4″
Function Classroom
Grade Grade 2 – Medium Duty Commercial / Heavy Duty Residential
Handing Field Reversible
Industry Finish US26D/626 Satin Chrome
Keyway Schlage C
Knob/Lever Lever
Latch/Bolt/Backset 2-3/4″
Manufacturer LSDA
Pinning 6-Pin, Keyed 5-Pin
Series L100
Standards / Ratings ANSI/BHMA 156.2 Series 4000 Grade 2; UL Listed Latches (USA and Canada) for 3-hour fire doors
Strike ASA 4-7/8″
Thru Bolting Yes
Type – Additional Info Cylindrical
For more information, Connect With Us and let IDN help find what you need.
Applications:
These locks are recommended for use on exterior and interior doors. Typical applications include Offices, Commercial Properties, Retail Spaces, and Multi-Family Buildings.
