The L100-Series is a complete line of Grade 2 commercial leversets. Built with independent return springs in each lever and with an optional clutch feature to protect against excessive torque, these levers resist sagging. The L-shaped lever design with less than 1/2 ” gap between the handle and the door meets most accessibility codes.
Specifications:
Design Style Lexington (LE)
Door Prep 2-1/8″ diameter cross bore; 1″ edge bore
Door Thickness 1-3/8″ – 1-3/4″
Function Privacy
Grade Grade 2 – Medium Duty Commercial / Heavy Duty Residential
Handing Field Reversible
Industry Finish US26D/626 Satin Chrome
Knob/Lever Lever
Latch/Bolt/Backset 2-3/4″
Manufacturer LSDA
Series L100
Type – Additional Info Cylindrical
For more information, Connect With Us and let IDN help find what you need.
Applications:
These locks are recommended for use on exterior and interior doors. Typical applications include Offices, Commercial Properties, Retail Spaces, and Multi-Family Buildings.

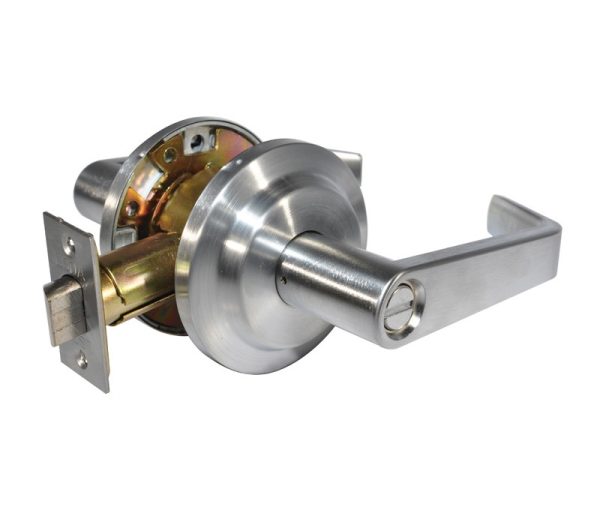

LSDA GRADE 2 PRIVACY LEVER LEXINGTON UL 2-3/4″ SATIN CHROME 109923 – L120LE26D2-3/4UL
