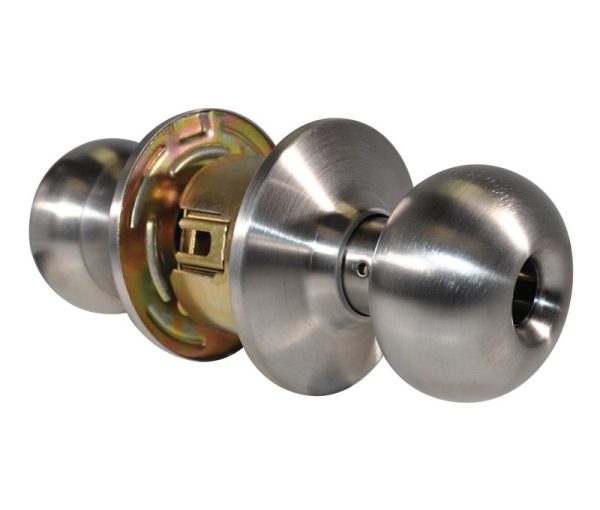

The 100-Series door knobs feature cylindrical construction for use on a variety of commercial doors. Classic Ball (B) and Plymouth (P) styles make these excellent retrofit and replacement locks. Compatible with many retrofit cylinders such as LSDA C500, Ilco, GMS and most High-Security brands including Medeco, Assa, Schlage Primus, Kaba Peaks, etc. Latches and cylinders must be ordered separately.
Specifications:
Design Style Plymouth (P) Flattened Round
Door Prep 2-1/8″ diameter cross bore; 1″ edge bore
Door Thickness 1-3/8″ – 1-3/4″
Function Storeroom
Grade Grade 2 – Medium Duty Commercial / Heavy Duty Residential
Handing Field Reversible
Included in package Installation Instructions
Industry Finish US32D/630 Satin Stainless Steel
Keyway Less Cylinder
Knob/Lever Knob
Manufacturer LSDA
Series 100
Standards / Ratings ANSI/BHMA 156.2 Series 4000 Grade 2
Strike ASA 4-7/8″
Thru Bolting Yes
Type – Additional Info Cylindrical
For more information, Connect With Us and let IDN help find what you need.
Applications:
These locks are recommended for use on exterior and interior doors. Typical applications include Offices, Commercial Properties, Retail Spaces, and Multi-Family Buildings.
