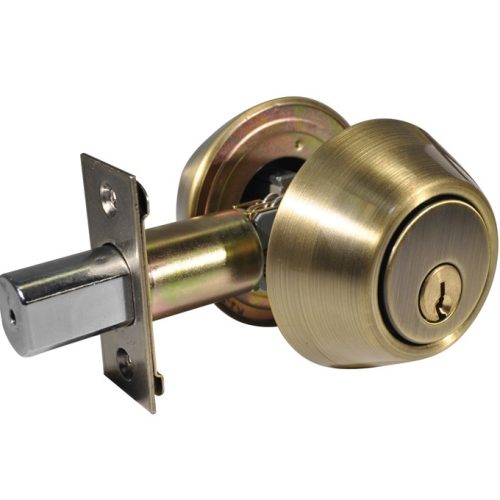

LSDA GRADE 3 DOUBLE CYLINDER DEADBOLT KWIKSET ADJUSTABLE UL REMOVABLE CYLINDER STAINLESS STEEL 086314 – 25R32D K ADJ UL KA4

The removable cylinder deadbolt locks 20R-Series offer a flexible removable cylinder option which is compatible with the LSDA C500 cylinder, and many other cylinders including high security cylinders. The locks are easy to rekey, making them an excellent choice for add-ons and retrofits. Optional cylinders: Compatible with many retrofit cylinders such as LSDA C500, Ilco, GMS and most High-Security brands including Medeco, Assa, Schlage Primus, Kaba Peaks, etc.
Specifications:
Combinating Keyed Alike
Cylinder 6-Pin cylinder keyed 5-Pin KW1 KA4 (For replacement options see Benefits & Applications)
Deadbolt 1″ x 2-1/4″ Faceplate
Door Prep 1-1/2” – 2-1/8” diameter bore; 1” crossbore
Door Thickness 1-3/8″ – 1-3/4″
Function Double Cylinder Deadbolt
Grade Grade 3 – Residential
Handing Field Reversible
Included in package Instructions Template Mounting Hardware
Industry Finish US32D/630 Satin Stainless Steel
Keyway Kwikset KW1
Latch/Bolt/Backset Adjustable
Manufacturer LSDA
Material Stainless Steel Zinc Steel
Pinning 6-Pin, Keyed 5-Pin
Reinforcement No
Series 20R
Standards / Ratings Meets ANSI/BHMA 156.2 Series 4000 Grade 3; Latch is UL Listed (USA and Canada) for 3-hour fire doors
Strike 1-1/8″ x 2-3/4″
Trim Ring No
Type – Additional Info Cylindrical
For more information, Connect With Us and let IDN help find what you need.
Applications:
These locks are recommended for use on exterior and interior doors and typical applications include Offices, Commercial Property, Residences, Multi-Family Buildings, Industrial Sites, and Public Buildings.
