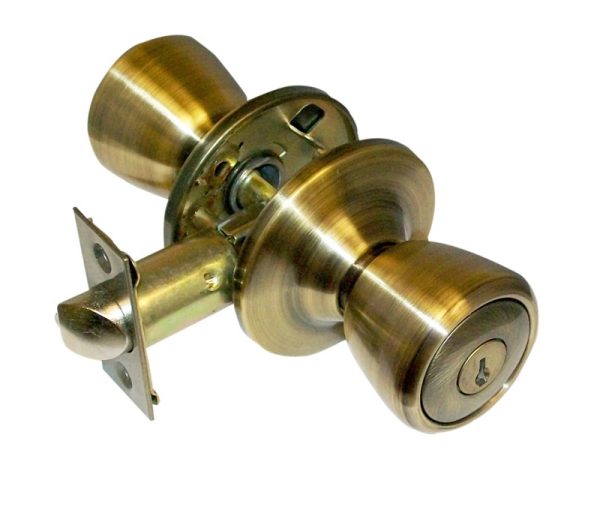

The 70-Series knobs are residential grade tubular locks in a classic style and available in 3 finishes. These locks feature a half-moon spindle and a rounded tulip knob style matching the most popular residential knobs.
Specifications:
Combinating Keyed Alike
Cylinder KW1 5-Pin KA4
Design Style Classic (C)
Door Prep 2-1/8″ diameter cross bore; 1″ edge bore
Door Thickness 1-3/8″ – 1-3/4″
Function Entry
Grade Grade 3 – Residential
Handing Field Reversible
Included in package Lock body latch screw packet strike installation instructions 2 keys
Industry Finish US5/609 Antique Brass
Keyway Kwikset KW1
Knob/Lever Knob
Latch/Bolt/Backset Adjustable
Manufacturer LSDA
Material Stainless Steel and Brass
Misc See Parts & Accessories Section
Pinning 5-Pin
Series 70
Standards / Ratings ANSI/BHMA 156.2 Series 4000 Grade 3
Strike Full Lip 2-1/4″ Radius Corner
Type – Additional Info Tubular
For more information, Connect With Us and let IDN help find what you need.
Applications:
Typical applications are Apartments and Homes.
