LSDA GRADE 3 SINGLE CYLINDER COMBINATION WITH BALL KNOB SCHLAGE C BRIGHT BRASS 109769 – 03B3S KA20

SKU: 03B3S KA20 Category: Tag: Brand:

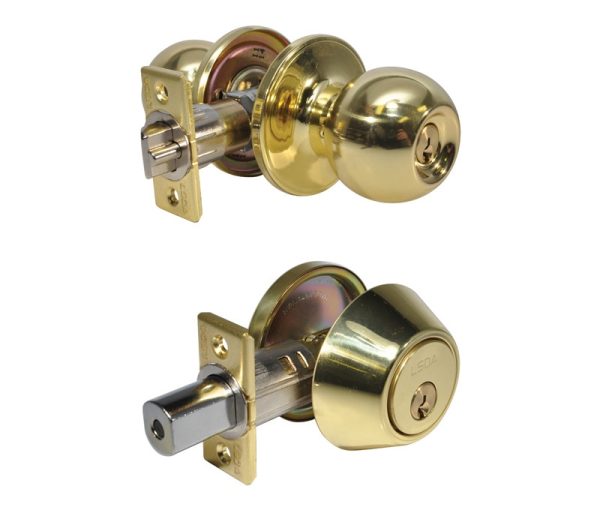

The 03-Series combines a tubular knob lock with a single or double cylinder deadbolt. Both locks are keyed to the same key for convenience and ease of installation.
Specifications:
Combinating Keyed Alike
Design Style Ball (B) Round
Door Prep Knob lock -2-1/8″ diameter cross bore; 1″ edge bore; Deadbolt -1-1/2″ or 2-1/8″ diameter cross bore; 1″ edge bore
Door Thickness 1-3/8″ – 1-3/4″
Function Entry with Deadbolt
Grade Grade 3 – Residential
Handing Field Reversible
Industry Finish US3/605 Bright Brass
Keyway Schlage C
Knob/Lever Knob
Latch/Bolt/Backset Adjustable
Manufacturer LSDA
Pinning 5-Pin
Series 00
Standards / Ratings ANSI/BHMA 156.2 Series 4000 Grade 3
Type – Additional Info Tubular
For more information, Connect With Us and let IDN help find what you need.
Applications:
These locks are recommended for use on exterior doors. Typical applications include Houses and Apartments.
