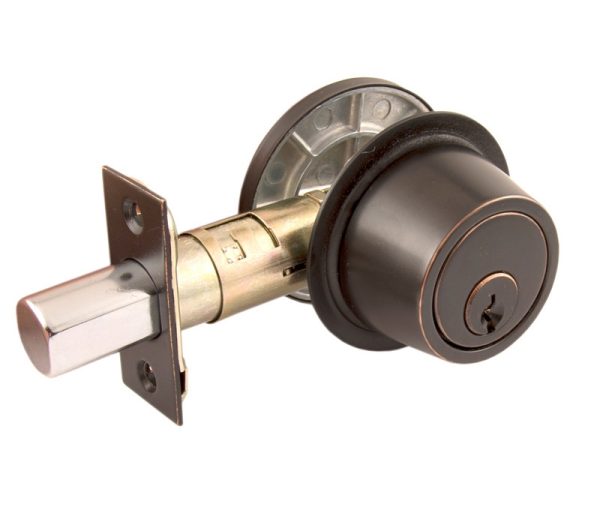

LSDA GRADE 3 SINGLE CYLINDER DEADBOLT SCHLAGE C ADJUSTABLE BOLT DARK BRONZE 106239 – D610S10B

SKU: D610S10B Category: Tag: Brand:

The LSDA D600 series are deadbolt locks in a classic design that is extremely versatile. These locks can be installed on doors with 1-1/2″ or 2-1/8″ holes. They come with a narrow diameter adjustable deadbolt. A rugged gatelatch can be purchased separately. Popular SC1 keyway is standard, but replacement cylinders in many keyways can be substituted. Optional cylinders: Compatible with many retrofit cylinders such as LSDA C500, Ilco, GMS and most High-Security brands including Medeco, Assa, Schlage Primus, Kaba Peaks, etc.
Specifications:
Combinating Keyed Alike
Cylinder 6-Pin cylinder keyed 5-Pin SC1 (For replacement options see Benefits & Applications)
Deadbolt 1-1/8″ x 2-1/4″ Faceplate
Design Style Thumbturn
Door Prep 1-1/2” to 2-1/8” diameter bore x 7/8” to 1” crossbore for deadbolt (1” required for optional gate latch)
Door Thickness 1-3/8″ – 1-3/4″
Function Single Cylinder Deadbolt
Grade Grade 3 – Residential
Handing Field Reversible
Included in package Instructions Template Mounting Hardware
Industry Finish US10B/613 Dark Bronze
Keyway Schlage C
Latch/Bolt/Backset Adjustable
Manufacturer LSDA
Material Brass Zinc Steel
Misc See Parts & Accessories Section
Pinning 6-Pin, Keyed 5-Pin
Reinforcement No
Series D600
Standards / Ratings ANSI/BHMA 156.2 Series 4000 Grade 3
Strike 1-1/8″ x 2-3/4″
Trim Ring Yes
Type – Additional Info Cylindrical
For more information, Connect With Us and let IDN help find what you need.
Applications:
These locks are recommended for use on exterior and interior doors and typical applications include Offices, Commercial Property, Residences, Multi-Family Buildings, Industrial Sites, and Public Buildings.
