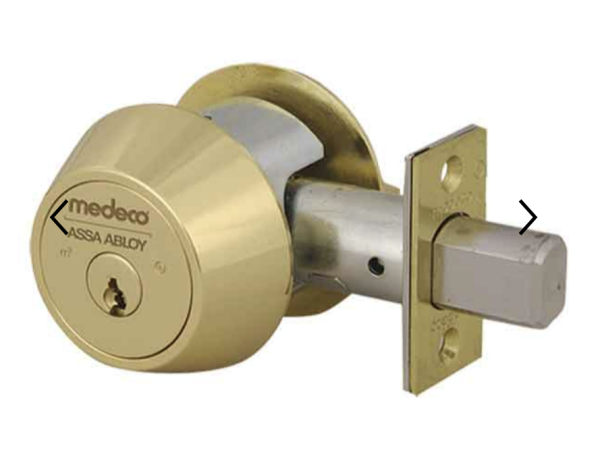

MEDECO GRADE 1 M3 DOUBLE CYLINDER DEADBOLT 2-3/4″ BACKSET M3 – 11TC622 05FMS

Specifications:
Combinating Sub-Assembled
Deadbolt 1-1/8″ x 2-1/4″
Door Prep 1″ x 2-1/8″
Door Thickness 1-3/4″ – 2-1/2″
Function Double Cylinder Deadbolt
Grade Grade 1 – Heavy Duty Residential (High Security)
Handing Field Reversible
Included in package Instructions Template Mounting Hardware
Industry Finish US3/605 Bright Brass
Keyway FM
Latch/Bolt/Backset 2-3/4″
Manufacturer Medeco
Pinning 6-Pin
Reinforcement Anti-Pry Shield Strike Reinforcement
Standards / Ratings UL ANSI/BHMA A165.5
Strike 1-1/8″ x 2-3/4″
Trim Ring No
Type – Additional Info Cylindrical
For more information, Connect With Us and let IDN help find what you need.
Applications:
High Security deadbolts provide additional security for many applications. Deadbolts offer a longer locking bolt which extends farther than most latches. The bolt can only be retracted with the proper key or combination or by means of a Thumbturn. Most provide dual locking systems along with key control options. They offer pick and drill resistance. Physical attacks are circumvented by anti-pry shields.
