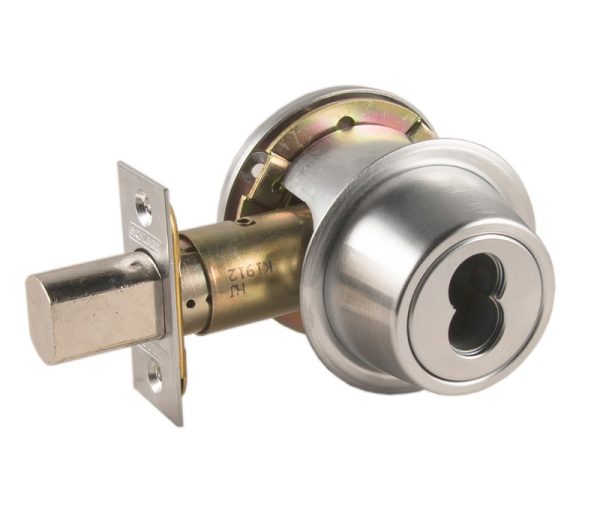

SCHLAGE GRADE 2 CLASSROOM DEADBOLT – B563BD626

Specifications:
Combinating SFIC – Small Format Interchangeable Core
Deadbolt 1-1/8″ x 2-1/4″ Faceplate Drive-In Adapter
Design Style Thumbturn
Door Prep 1″ x 1-1/2″ or 2-1/8″
Door Thickness 1-3/4″ – 2″
Function Classroom Deadbolt
Grade Grade 2 – Medium Duty Commercial / Heavy Duty Residential
Handing Field Reversible
Included in package Instructions Template Mounting Hardware
Industry Finish US26D/626 Satin Chrome
Keyway Less Core
Latch/Bolt/Backset Adjustable
Manufacturer Schlage
Material Brass Zinc
Pinning 6-Pin or 7-Pin – Less Core
Reinforcement Anti-Pry Shield for 2-1/8″ Prep
Series B500
Standards / Ratings UL ANSI A156.5
Strike 1-1/8″ x 2-3/4″ with Box and Door Frame Reinforcement
Trim Ring No
Type – Additional Info Cylindrical
For more information, Connect With Us and let IDN help find what you need.
Applications:
Deadbolts provide additional security for many applications. Deadbolts offer a longer locking bolt which extends farther than most latches. The bolt can only be retracted with the proper key or combination or by means of a Thumbturn.
