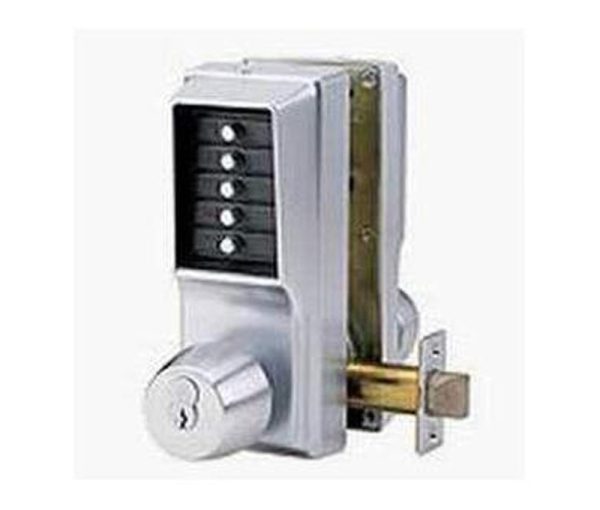

SIMPLEX PUSH BUTTON KNOB SATIN CHROME CORBIN LFIC – 1021C26D41

Specifications:
Combinating LFIC – Large Format Interchangeable Core
Design Style Knob
Door Prep 2-1/8″ x 1″ with 1″ Hole for Combination Change and four 1/4″ Holes for Mounting Bolts
Door Thickness 1-3/8″ – 2-1/4″
Door Type Wood or Metal
Environment Rating Highly Weather Resistant
Function Storeroom
Grade Grade 1 – Heavy Duty Commercial
Handing Left Hand (Field Reversible)
Industry Finish US26D/626 Satin Chrome
Key Override Corbin Russwin 6Pin Large Format Interchangeable Core (LFIC) (Core not Included)
Keyway Corbin (Less Core)
Knob/Lever Knob
Latch/Bolt/Backset 2-3/4″
Locking Device Cylindrical Deadlatch
Manufacturer dormakaba
Misc Includes Installation and Combination Change Tool Weight 7.25 lbs. (4.5 kg)
Pin Access Single Code 1 – 5 Digits (Pressed Individually or Simultaneously)
Pinning Less Core
Series 1000
Standards / Ratings ANSI 156.2 / Grade 1 / 3-Hour UL/ULC Fire Rating for “A” Label Doors
Strike Type ASA 4-7/8″
Type – Additional Info Cylindrical
