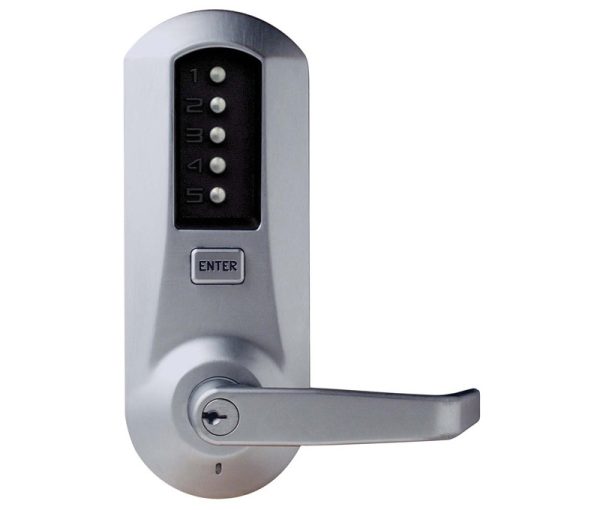

SIMPLEX PUSH BUTTON LEVER KIL SCHLAGE SATIN CHROME – 5021XS WL26D41

Specifications:
Combinating Keyed Different
Design Style Lever
Door Prep 2-1/8″ x 1″ with four 1/4″ Holes for Mounting Bolts
Door Thickness 1-3/8″ – 2-1/4″
Door Type Wood or Metal
Environment Rating Highly Weather Resistant
Function Storeroom
Grade Grade 1 – Heavy Duty Commercial
Handing Left Hand (Field Reversible)
Industry Finish US26D/626 Satin Chrome
Key Override Schlage C 6Pin Keyed Different
Keyway Schlage C
Knob/Lever Lever
Latch/Bolt/Backset 2-3/4″
Locking Device Cylindrical Deadlatch
Manufacturer dormakaba
Misc Includes Installation and Combination Change Tool 2 Keys Weight 8 lbs. (3.65 kg)
Pin Access Single Code 1 – 5 Digits (Pressed Individually or Simultaneously)
Pinning 6-Pin
Series 5000
Standards / Ratings ANSI 156.2 / Grade 1 / 3-Hour UL/ULC Fire Rating for “A” Label Doors, ADA Compliant
Strike Type ASA 4-7/8″
Type – Additional Info Cylindrical
