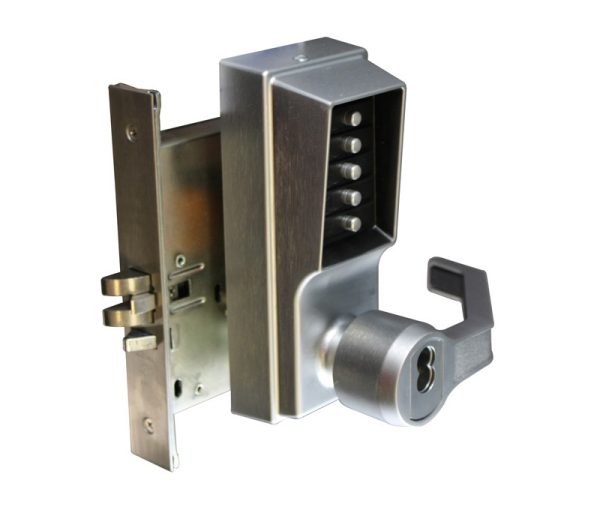

SIMPLEX PUSH BUTTON MORTISE LOCK PASSAGE SFIC RIGHT HAND SATIN CHROME – R8146B26D41

Specifications:
Combinating SFIC – Small Format Interchangeable Core
Design Style Lever
Door Prep Standard 86 Prep
Door Thickness 1-3/4″ – 2-1/4″
Door Type Wood or Metal
Environment Rating Highly Weather Resistant
Function Storeroom with Passage and Lockout
Grade Grade 1 – Heavy Duty Commercial
Handing Right Hand
Industry Finish US26D/626 Satin Chrome
Key Override Small Format Interchangeable Core (SFIC) 6 or 7Pin (Core not Included)
Keyway Less Core
Knob/Lever Lever
Latch/Bolt/Backset 2-3/4″
Locking Device Mortise Deadlatch
Manufacturer dormakaba
Misc Includes Installation and Combination Change Tool Weight 9.8 lbs. (3.7 kg)
Operation Modes Combination Entry Key Override Passage Lockout
Pin Access Single Code 1 – 5 Digits (Pressed Individually or Simultaneously)
Pinning 6-Pin or 7-Pin – Less Core
Series 8100
Standards / Ratings ANSI 156.2 / Grade 1 / 3-Hour UL/ULC Fire Rating for “A” Label Doors
Strike Type ASA 4-7/8″
Type – Additional Info Mortise
