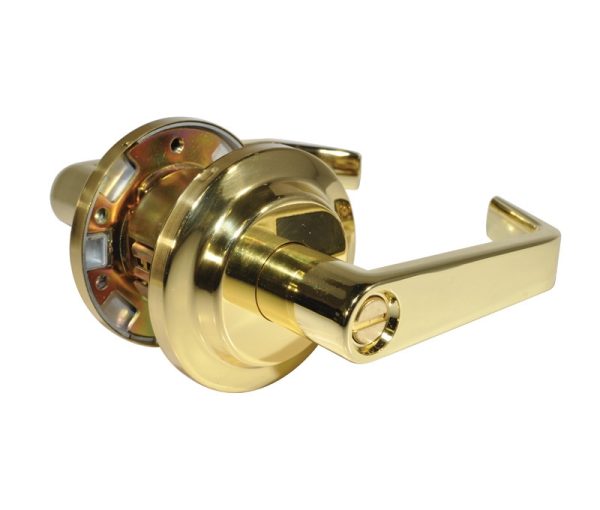

The L100-Series is a complete line of Grade 2 commercial leversets. Built with independent return springs in each lever and with an optional clutch feature to protect against excessive torque, these levers resist sagging. The L-shaped lever design with less than 1/2 ” gap between the handle and the door meets most accessibility codes. Latch must be ordered separately.
Specifications:
Design Style Providence
Door Prep 2-1/8″ diameter cross bore; 1″ edge bore
Door Thickness 1-3/8″ – 1-3/4″
Function Privacy
Grade Grade 2 – Medium Duty Commercial / Heavy Duty Residential
Handing Field Reversible
Included in package Installation Instructions
Industry Finish US3/605 Bright Brass
Knob/Lever Lever
Manufacturer LSDA
Series L100
Standards / Ratings ANSI/BHMA 156.2 Series 4000 Grade 2; UL Listed Latches (USA and Canada) for 3-hour fire doors
Strike ASA 4-7/8″
Thru Bolting Yes
Type – Additional Info Cylindrical
For more information, Connect With Us and let IDN help find what you need.
Applications:
These locks are recommended for use on exterior and interior doors. Typical applications include Offices, Commercial Properties, Retail Spaces, and Multi-Family Buildings.
