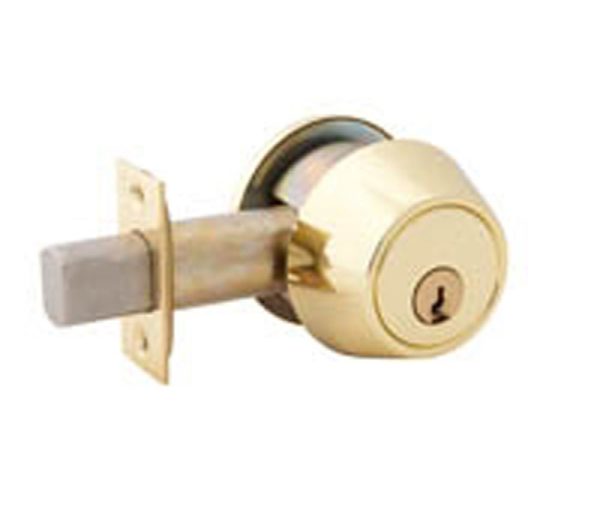

LSDA GRADE 2 SINGLE CYLINDER DEADBOLT SC4 2-3/4″ BACKSET UL 105687 – 260 3S2-3/4UL

The 260-Series are extra heavy-duty deadbolt locks. A removable shroud surrounds the latchbolt and a free-spinning solid metal collar encases the cylinder, resisting most physical attacks. Popular WR5 and SC4 keyway or Small Format Interchangable Core (SFIC) prep are available.
Specifications:
Combinating Keyed Different
Cylinder 6-Pin SC4
Deadbolt 1-1/8″ x 2-1/4″ Faceplate
Design Style Thumbturn
Door Prep 2-1/8” diameter bore; 1” crossbore removable anti-pry shield
Door Thickness 1-3/8″ – 1-3/4″
Function Single Cylinder Deadbolt
Grade Grade 2 – Medium Duty Commercial / Heavy Duty Residential
Handing Field Reversible
Included in package Instructions Template Mounting Hardware
Industry Finish US3/605 Bright Brass
Keyway Schlage C
Latch/Bolt/Backset 2-3/4″
Manufacturer LSDA
Material Brass Zinc Steel
Pinning 6-Pin
Reinforcement Anti-Pry Shield for 2-1/8″ Prep
Series 260
Standards / Ratings ANSI/BHMA 156.2 Series 4000 Grade 2; UL Listed Latches (USA and Canada) for 3-hour fire doors
Strike 4-7/8″ x 1-1/4″ with Box and Door Frame Reinforcement
Trim Ring No
Type – Additional Info Cylindrical
For more information, Connect With Us and let IDN help find what you need.
Applications:
These locks are recommended for use on exterior and interior doors. Typical applications include Offices, Commercial Properties, Residences, Multi-Family Buildings, Industrial Sites, and Public Buildings.
