LSDA GRADE 3 DOUBLE COMBINATION KWIKSET BALL KNOB MILLENIUM BRIGHT BRASS 068816 – 35B MB3K KA20

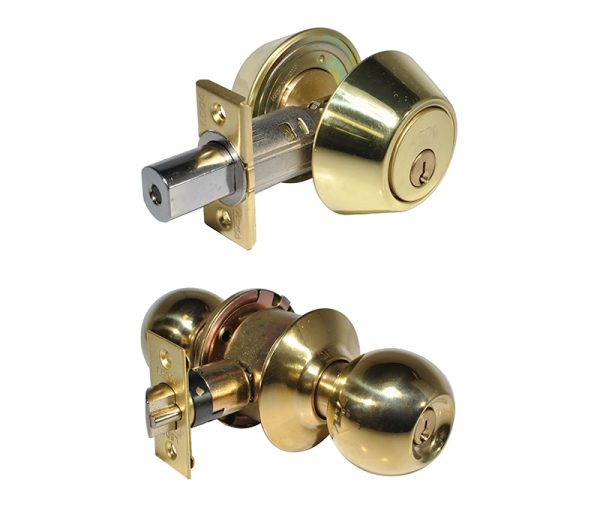

The 30-Series combines a cylindrical knob lock with a single or double cylinder deadbolt. Both locks are keyed to the same key for convenience and ease of installation.
Specifications:
Combinating Keyed Alike
Design Style Ball (B) Round
Door Prep Knob lock -2-1/8″ diameter cross bore; 1″ edge bore; Deadbolt -1-1/2″ or 2-1/8″ diameter cross bore; 1″ edge bore
Door Thickness 1-3/8″ – 1-3/4″
Function Entry with Deadbolt
Grade Grade 3 – Residential
Handing Field Reversible
Included in package Installation Instructions 4 Keys
Industry Finish US03L/505 Bright Brass MILLENIUM Finish
Keyway Kwikset KW1
Knob/Lever Knob
Latch/Bolt/Backset Adjustable
Manufacturer LSDA
Pinning 5-Pin
Series 30
Standards / Ratings ANSI/BHMA 156.2 Series 4000 Grade 3
Strike Full Lip 2-1/8″ Square Corner
Type – Additional Info Cylindrical
For more information, Connect With Us and let IDN help find what you need.
Applications:
These locks are recommended for use on exterior doors.Typical applications include Houses, Apartments, Offices, and Storerooms.
