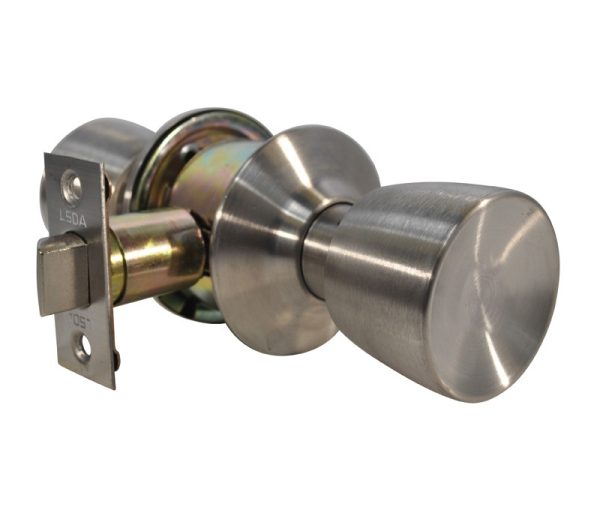

LSDA GRADE 3 PASSAGE KNOB STANDARD STAINLESS STEEL 009756 – 11S32D

SKU: 11S32D Category: Tag: Brand:

The 10-Series door knobs are residential grade cylindrical locks. Available in three finishes, they can be used in a variety of residential and light commercial applications.
Specifications:
Design Style Standard (S) Tapered
Door Prep 2-1/8″ diameter cross bore; 1″ edge bore
Door Thickness 1-3/8″ – 1-3/4″
Function Passage
Grade Grade 3 – Residential
Handing Field Reversible
Included in package Installation Instructions
Industry Finish US32D/630 Satin Stainless Steel
Knob/Lever Knob
Latch/Bolt/Backset Adjustable
Manufacturer LSDA
Series 10
Standards / Ratings ANSI/BHMA 156.2 Series 4000 Grade 3
Strike Full Lip 2-1/4″
Type – Additional Info Cylindrical
For more information, Connect With Us and let IDN help find what you need.
Applications:
These locks are recommended for use on exterior and interior doors.Typical applications include Houses, Apartments, Offices and Businesses.
