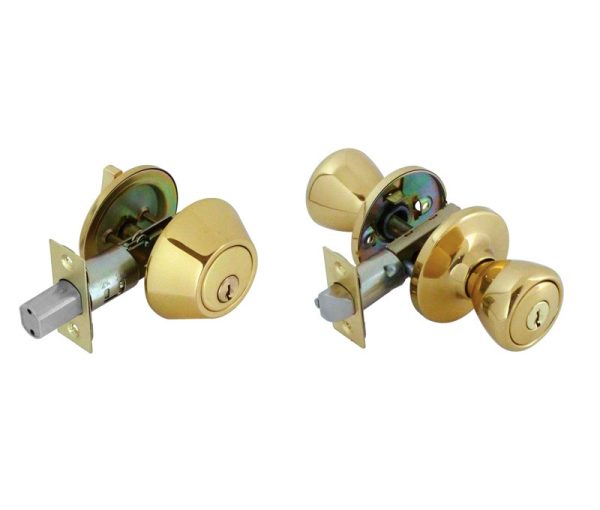

LSDA GRADE 3 SINGLE COMBINATION KWIKSET CLASSIC BRIGHT BRASS 101641 – 7075C3K KA10

The 7075 series provides you with the combination of a single cylinder deadbolt and an entry knob set to work with the same keys. This is a great time saver when installing new doors or when replacing hardware on apartments or houses. Available in satin nickel and bright brass finishes, these locks use the popular KW1 keyway.
Specifications:
Combinating Keyed Alike
Cylinder KW1 5-Pin knob and deadbolt are KA KA10
Design Style Classic (C)
Door Prep Knob lock -2-1/8″ diameter cross bore; 1″ edge bore; Deadbolt -1-1/2″ or 2-1/8″ diameter cross bore; 1″ edge bore
Door Thickness 1-3/8″ – 1-3/4″
Function Entry with Deadbolt
Grade Grade 3 – Residential
Handing Field Reversible
Included in package Installation Instructions 4 Keys
Industry Finish US3/605 Bright Brass
Keyway Kwikset KW1
Knob/Lever Knob
Latch/Bolt/Backset Adjustable
Manufacturer LSDA
Pinning 5-Pin
Series 70
Standards / Ratings ANSI/BHMA 156.2 Series 4000 Grade 3
Strike Full Lip 2-1/8″ Square Corner
Type – Additional Info Tubular
For more information, Connect With Us and let IDN help find what you need.
Applications:
Typical applications include Houses, Apartments, Offices, and Storerooms.
