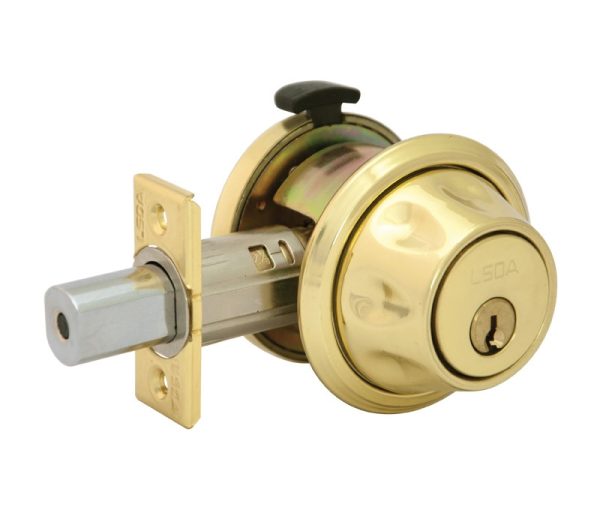

LSDA GRADE 3 SPIN TO LOCK SINGLE CYLINDER DEADBOLT KWIKSET KEYWAY 076079 – 22 3K VP

Specifications:
Combinating Keyed Alike
Cylinder 5-Pin KW1 Kwy KA4
Deadbolt 1″ x 2-1/4″ Faceplate
Design Style Thumbturn
Door Prep 1-1/2” – 2-1/8” diameter bore; 1” crossbore
Door Thickness 1-3/8″ – 1-3/4″
Function Single Cylinder Deadbolt
Grade Grade 3 – Residential
Handing Field Reversible
Included in package Instructions Template Mounting Hardware
Industry Finish US3/605 Bright Brass
Keyway Kwikset KW1
Latch/Bolt/Backset Adjustable
Manufacturer LSDA
Material Brass Zinc Steel
Misc Display Package See Parts & Accessories Section
Pinning 5-Pin
Reinforcement No
Series 20
Standards / Ratings ANSI/BHMA 156.2 Series 4000 Grade 3
Strike 1-1/8″ x 2-3/4″
Trim Ring No
Type – Additional Info Cylindrical
For more information, Connect With Us and let IDN help find what you need.
Applications:
Unique “Spin-To-Lock” function allows you to lock the door from the outside without a key; and allows a person who is inside to block any key or masterkey from working the lock.
